Mogami 2934-00 Multicore Cable, 16-channels | Black 100mt
16-Kanal Multicore Kablo Ø 15,8 mm | Renk Siyah 100mt
Teknik Özellikler
• renk: siyah

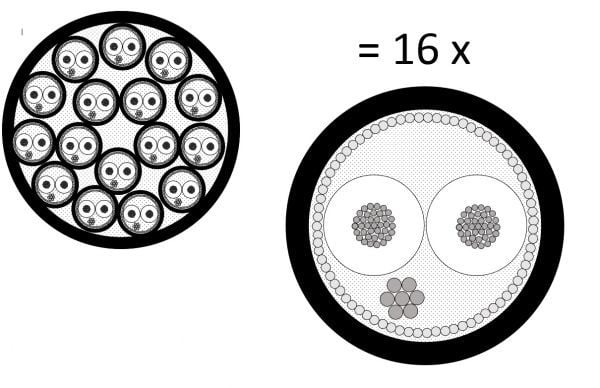

• no. of conductor: 16 x 2
• cable diameter: 15,8mm
• series: Multicore
• inner conductor: Details: 30 x 0,08 A / Size: 0,15 mm² (AWG26)
• insulation: Ov. Dia.: 1 mm / Material: XLPE / Farbe: Resistor Colorcode/Clear
• 2. insulation: Ov. Dia.: 2,8 mm / Material: Flexible PVC / Farbe: Resistor Colorcode
• drain wire: Details: 7 x 0,18 TA / Size: 0,18 mm² (AWG25)

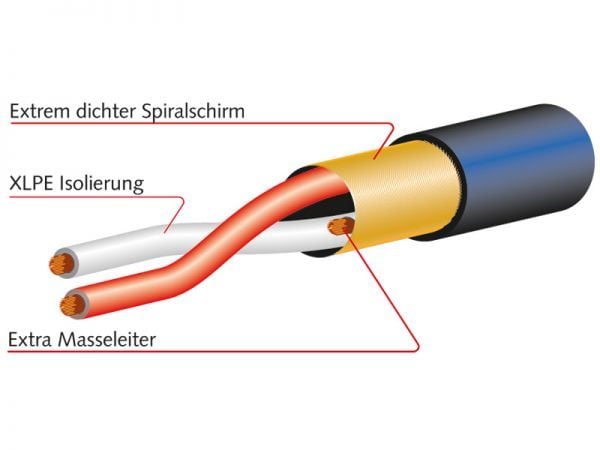

• shielding: Spiralshield (60 x 0,1 A)
• DC resistance: Inner Conductor: 0,130 Ohm/m / Shield: 0,030 Ohm/m
• capacity (1 kHz, 20°C): Inner Conductor-Shield: 130 pF/m / Conductor-Conductor: 12 pF/m
• applicable temperature: -20°C - +70°C
• jacket material: Flexible PVC
• kablo no.: 2934
• Ağırlık: 32,00 kg
